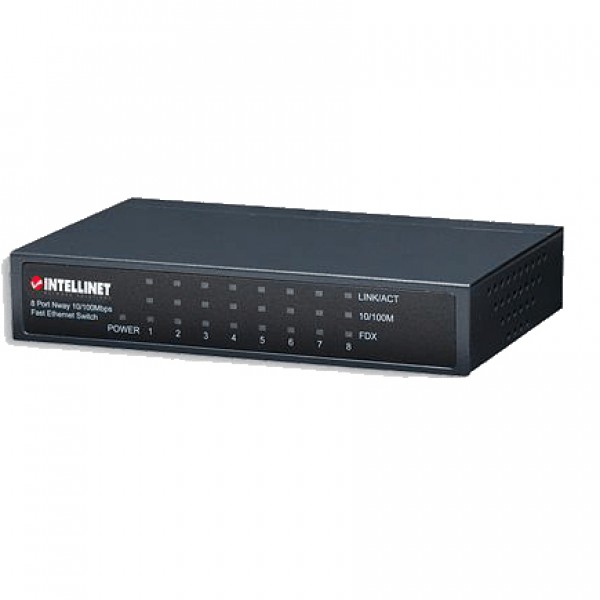

Intellinet 8-Port 10/100Mbps Switch 523318

Drucken
Intellinet 8-Port 10/100Mbps Switch 523318
Artikelnummer: 001664
Intellinet 8-Port 10/100Mbps Switch 523318
10,00 CHF
Vorrat: 1
Beschreibung

Standards

  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control, for full duplex mode)

    General
  • Media support:
    - 10Base-T Cat3, 4, 5 UTP/STP RJ-45
    - 100Base-TX Cat5 UTP/STP RJ-45
  • Packet filter/forwarding rate:
    - 148,800 pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • Buffer memory: 96 kBytes
  • MAC address table: 1024 entries
  • Switch architecture: store and forward
  • Certifications: FCC Class B, CE

    LEDs
  • Power
  • Link/TX
  • Full/half duplex

    Power
  • External power adapter: 5 V, 600 mA

    Environmental
  • Metal housing
  • Dimensions: 155 (W) x 85 (L) x 25 (H) mm (6.1 (W) x 3.3 (L) x 1.0 (H) in.)
  • Weight: 420 g (0.9 lbs.)
  • Operating temperature: 0 – 40°C (32 – 104°F)
  • Operating humidity: 10 – 90% RH, non-condensing
  • Storage temperature: -20 – 70°C (-4 – 158°F)
