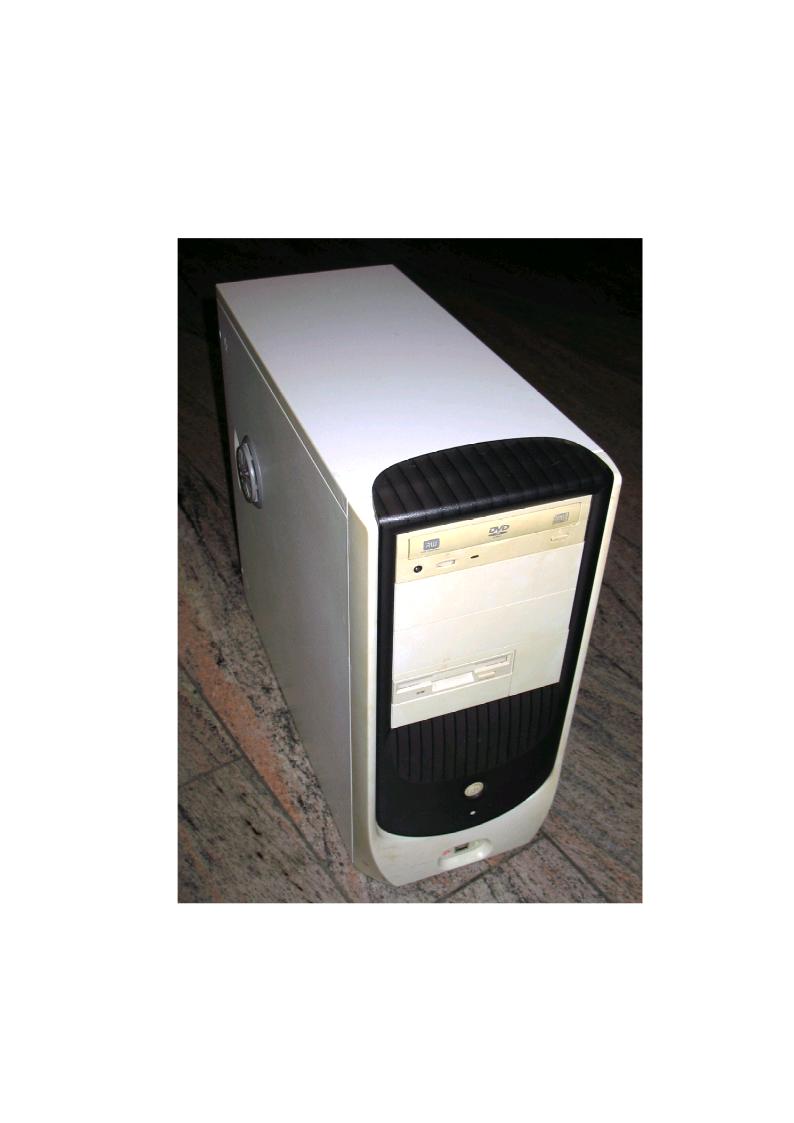

Individual-PC GIGABYTE GA-8I915G-MF

Drucken
Intel Pentium4 CPU 2.8GHz, 40 GB Festplatte, 512 MB DDR1 Ram, 350W Netzteil, Onboard VGA Grafik, DVD-Brenner, Linux installiert
Artikelnummer: 003156
Beschreibung

GENERAL

  • Chipset Type
    Intel 915G Express / Intel ICH6
  • Compatible Processors
    Pentium 4
  • Processor Socket
    LGA775 Socket
  • Max Bus Speed
    800 MHz
  • Max Processors Qty
    1
  • Manufacturer
    Gigabyte Technology Co. Ltd.

EXPANSION / CONNECTIVITY

  • Expansion Slots
    4 x DIMM 184-pin (2.5 V)
    1 x CPU
    1 x PCIe x16
    1 x PCIe x1
    2 x PCI
  • Storage Interfaces
    SATA-150 -connectors: 4 x 7pin Serial ATA
    ATA-100 -connectors: 1 x 40pin IDE
  • Internal Interfaces
    1 x floppy
    1 x audio - 4 pin MPC
  • Additional Connectors (Optional)
    3 x IEEE 1394 (FireWire), 4 x USB 2.0

INTERFACE PROVIDED

  • Qty
    1, 4
  • Type
    LAN (Gigabit Ethernet), PS/2 keyboard, audio line-out (center/subwoofer), audio line-out (rear), microphone, parallel, PS/2 mouse, SPDIF in, SPDIF out, USB 2.0, VGA, audio line-in, audio line-out, audio line-out (back surround)
  • Connector Type
    mini-jack

NETWORKING

  • Data Link Protocol
    Ethernet, Fast Ethernet, Gigabit Ethernet
  • Network Controller
    Marvell Yukon 88E8001
  • Network
    Gigabit Ethernet

RAM

  • Max Supported Size
    4 GB
  • Features
    dual channel memory architecture

GRAPHICS

  • Max Allocated RAM Size
    224 MB
  • Graphics Controller
    Intel GMA 900
  • Memory Allocation Technology
    Dynamic Video Memory Technology 3.0

AUDIO OUTPUT

  • Sound Output Mode
    7.1 channel surround
  • Compliant Standards
    High Definition Audio
  • Type
    sound card
  • Audio Codec
    Realtek ALC880
  • Audio
    High Definition Audio (8-channel)
