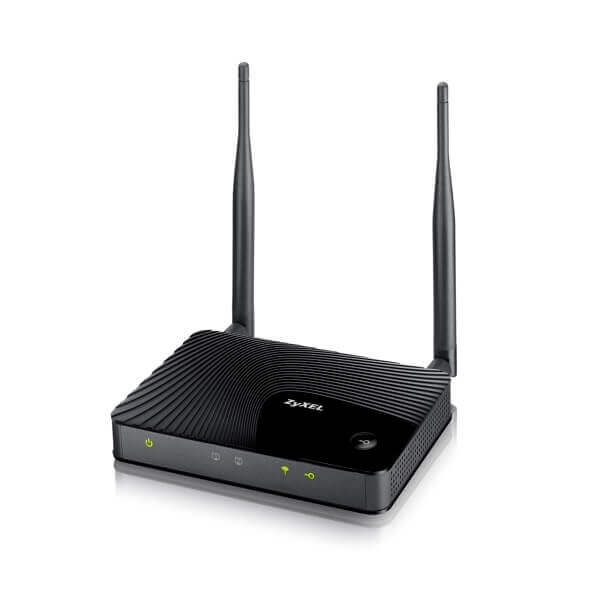

ZyXEL WAP3205 v2

Networking

• Type
  wireless access point
• Connectivity Technology
  wireless
• Data Link Protocol
  IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Features
  Access Point operational mode, Auto Channel Select (ACS), repeating mode, reset button, MAC address filtering, Wi-Fi Multimedia (WMM) support, Wi-Fi Protected Setup (WPS), Wireless Client Mode, Wireless Distribution System (WDS) support, auto-uplink (auto MDI/MDI-X), event log, firmware upgradable
• Compliant Standards
  IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi CERTIFIED, Wi-Fi Protected Setup
• Wireless Protocol
  802.11b/g/n
• Remote Management Protocol
  HTTP
• Data Transfer Rate
  300 Mbps
• Encryption Algorithm
  128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
• Status Indicators
  Power, WLAN, LAN, WPS

Power Device

• Power Consumption Operational
  8 Watt
• Type
  external power adapter

Antenna

• Antenna Qty
  2
• Gain Level
  5 dBi
• Antenna Form Factor
  external detachable

Miscellaneous

• Encryption Algorithm
  128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Interface Provided

• Qty
  2

Environmental Parameters

• Min Operating Temperature
  32 °F
• Max Operating Temperature
  104 °F
• Humidity Range Operating
  10 - 90% (non-condensing)
