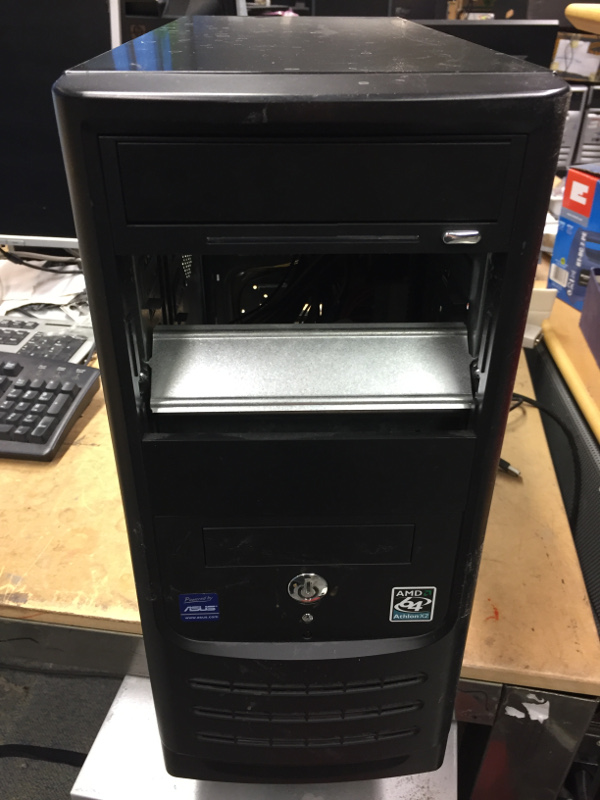

Individual-PC Intel E6750

Print
Intel Core 2 Duo, 2.13 GHZ, 1024 Ram, 80 GB HDD, Intel GMA 3100, 440 W Netzteil
Article Number: 002592
55,00 CHF
Richtpreis Anpassung
CHF
Wenn Sie dieses Produkt für Ihren privaten Gebrauch bestellen, können Sie hier den angegebenen Richtpreis nach oben oder unten abändern, Details dazu siehe AGB!
Stock: 0
Description

Mainboard Spezifikationen:

General

  • Chipset Type
    Intel G33 Express / Intel ICH9R
  • Compatible Processors
    Celeron, Core 2 Duo, Core 2 Quad, Pentium Dual Core
  • Processor Socket
    LGA775 Socket
  • Max Bus Speed
    1333 MHz
  • Max Processors Qty
    1
  • Manufacturer
    Intel

Processor

  • Max Supported Qty
    1
  • Installed Qty
    0

Expansion / Connectivity

  • Expansion Slots
    1 x CPU
    4 x DIMM 240-pin (1.8 V)
    1 x PCIe x16
    2 x PCIe x1
    1 x PCI
  • Storage Interfaces
    ATA-133 -connectors: 1 x 40pin IDC - 2 devices
    Intel ICH9R: SATA-300 -connectors: 5 x 7pin SATA, 1 x 7pin eSATA - 6 devices - RAID 0 / RAID 1 / RAID 0+1 / RAID 5
  • Additional Connectors (Optional)
    1 x IEEE 1394 (FireWire), 6 x USB 2.0
  • Power Connectors
    4-pin ATX12V connector, 24-pin main power connector
  • RAID Features
    Intel Matrix RAID Technology

Networking

  • Data Link Protocol
    Ethernet, Fast Ethernet, Gigabit Ethernet
  • Network Controller
    Intel 82566DC
  • Network
    Gigabit Ethernet

Processor / Memory / Storage

  • Max Supported Qty
    1

Miscellaneous

  • Microsoft Certifications
    Certified for Windows Vista
  • Package Type
    bulk
  • Compatibility
    Intel VIIV Technology
  • Product Type
    motherboard

Memory

  • Memory Allocation Technology
    Dynamic Video Memory Technology 4.0
  • Max Allocated RAM Size
    256 MB

Interface Provided

  • Qty
    1, 6
  • Type
    DVI-D, FireWire, microphone, LAN (Gigabit Ethernet), TOSLINK, USB 2.0, VGA, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (side surround)
  • Connector Type
    6 pin FireWire, mini-jack

Audio

  • Audio Codec
    STAC9271D
  • Compliant Standards
    High Definition Audio

RAM

  • Max Supported Size
    8 GB
  • Features
    dual channel memory architecture

Audio Output

  • Sound Output Mode
    7.1 channel surround
  • Compliant Standards
    High Definition Audio
  • Type
    sound card
  • Audio Codec
    STAC9271D
  • Audio
    High Definition Audio (8-channel)

Graphics

  • Max Allocated RAM Size
    256 MB
  • Graphics Controller
    Intel GMA 3100
  • Memory Allocation Technology
    Dynamic Video Memory Technology 4.0

Video

  • Video Output
    graphics adapter
  • Graphics Processor
    Intel GMA 3100

Manufacturer Warranty

  • Service & Support
    Limited warranty - 1 year

LAN

  • Network Interfaces
    Gigabit Ethernet
  • Network Controller
    Intel 82566DC

Supported RAM

  • Bus Clock
    800 MHz, 667 MHz
  • Features
    Dual channel memory architecture
  • Registered or Buffered
    Unbuffered
  • Speed
    PC2-6400, PC2-5300
  • Technology
    DDR2
  • Max Size
    8 GB

Header

  • Brand
    Intel
  • Product Line
    Intel Desktop Board
  • Model
    DG33TL
  • Packaged Quantity
    1
  • Compatibility
    PC

Mainboard

  • Form Factor
    micro ATX
  • Processor Socket
    LGA775 Socket
  • Compatible Processors
    Celeron, Core 2 Duo, Core 2 Quad, Pentium Dual Core
  • Data Bus Speed
    1333 MHz
  • Chipset Type
    Intel G33 Express
  • I/O Controller
    Intel ICH9R
  • Supported RAM Technology
    DDR2 SDRAM
  • Supported RAM Speed
    667 MHz, 800 MHz
  • Supported RAM Standard
    PC2-5300, PC2-6400
  • Supported RAM (Registered or Buffered)
    unbuffered
  • Power Connectors
    24-pin main power connector, 4-pin ATX12V connector

Mainboard Features

  • BIOS Type
    Intel
  • BIOS Features
    ACPI support, Hyper-Threading Technology, SMBIOS support
  • Sleep / Wake Up
    keyboard wake up, mouse wake up, suspend to RAM (STR), wake on PCI device, wake on USB port
  • Hardware Monitoring
    CPU core temperature, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage
  • Hardware Features
    Intel Clear Video Technology, Intel Quiet System Technology

Interfaces

  • Storage
    ATA-133, Serial ATA-300 (RAID), eSATA port
  • RAID Features
    Intel Matrix RAID Technology
  • USB 3.0 / FireWire
    FireWire

Cable Details

  • Type
    IDE cable, Serial ATA cable
  • Included Qty
    1, 2

Expansion Slots

  • Total Qty
    1, 2, 4
  • Voltage
    1.8 V
  • Type
    CPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16

Software

  • Software Included
    Intel Express Installer, drivers & utilities

Video Memory

  • Memory Allocation Technology
    Dynamic Video Memory Technology 4.0
  • Max Allocated RAM Size
    256 MB

Dimensions & Weight

  • Width
    9.6 in
  • Depth
    9.6 in

Service & Support

  • Type
    1 year warranty

Storage Interfaces

  • Chip
    Intel ICH9R
  • Interface
    ATA-133, Serial ATA-300
  • Connector(s)
    1 x 40pin IDC, 5 x 7pin Serial ATA, 1 x 7pin external SATA
  • Supported Devices Qty
    2, 6
  • RAID (Level)
    RAID 0 / RAID 1 / RAID 0+1 / RAID 5

Service & Support Details

  • Type
    limited warranty
  • Full Contract Period
    1 year

Features

  • BIOS Type
    Intel
  • BIOS Features
    ACPI support, SMBIOS support, Hyper-Threading Technology
  • Hardware Features
    Intel Quiet System Technology, Intel Clear Video Technology
  • Sleep / Wake Up
    Keyboard wake up, suspend to RAM (STR), mouse wake up, wake on PCI device, wake on USB port
  • Hardware Monitoring
    CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage


Prozessor Computer
  • Core 2 Duo
Prozessor-Taktfrequenz Computer
  • 2.66
Arbeitsspeicher Computer
  • 1024
Grafikkarte Computer
  • onboard
Festplatte Computer
  • 80
Netzteil Computer
  • 440
Bit Computer
  • 64
Bauform Computer
  • Mini-Tower
Kühlung Computer
  • Luft
Anzahl Prozessoren Computer
  • 1
Anschlüsse Computer
  • VGA
  • DVI-D
  • USB 2.0
  • RJ45
Schnittstellen Computer
  • SATA 300
  • PCI
  • PCI-Express 1x
  • PCI-Express 16x
